SF PRESS Series

The SF PRESS is designed for high speed press handling. With its high precision and unmatched productivity, the SF PRESS has become the best productivity tool for press handling loading and palletizing.

Features

The SF PRESS pin optimizes the efficiency and productivity of the overall press shop, with different

combinations for different applications and

a solid foundation for every press command due to LIKEHEATTREATMENT thermal technology.

All SF PRESS series are equipped with LIKEPRECISION technology,

the ultra-precise RV Precision Gearbox,

which allows the robot to take full advantage of its advantages even at high operating speeds.

b2_icon3.svg

Sustainable Benefits

SF PRESS has low operating costs and low maintenance expenses, helping you to reduce costs significantly.

b2_icon1.svg

Highly Precise Operation

Combined with excellent controller computing, it can perform many precise handling, stamping, and palletizing tasks.

fengfuchanpin-06.svg

Extensive Product Portfolio

From 8 kg to 25 kg load, the complete range of stamping processes is guaranteed to meet the diverse needs of the widest range of product specifications.

b2_icon4.svg

Suitable For Wet and Harsh Environments

The SF PRESS series is dust and water-resistant to IP 65 for base axes and even IP 67 for wrist axes, making it ready for all-day use.


SF8-K1400 Specifications

Maximum Radius:

1492 mm

Payload:

8 kg

Repeatability:

± 0.07 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.



SF25-C1538 Specifications

Maximum Radius:

53 mm

Payload:

15 kg

Repeatability:

± 0.08 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.



SF25-C1760 Specifications

Maximum Radius:

1760 mm

Payload:

25 kg

Repeatability:

± 0.1 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

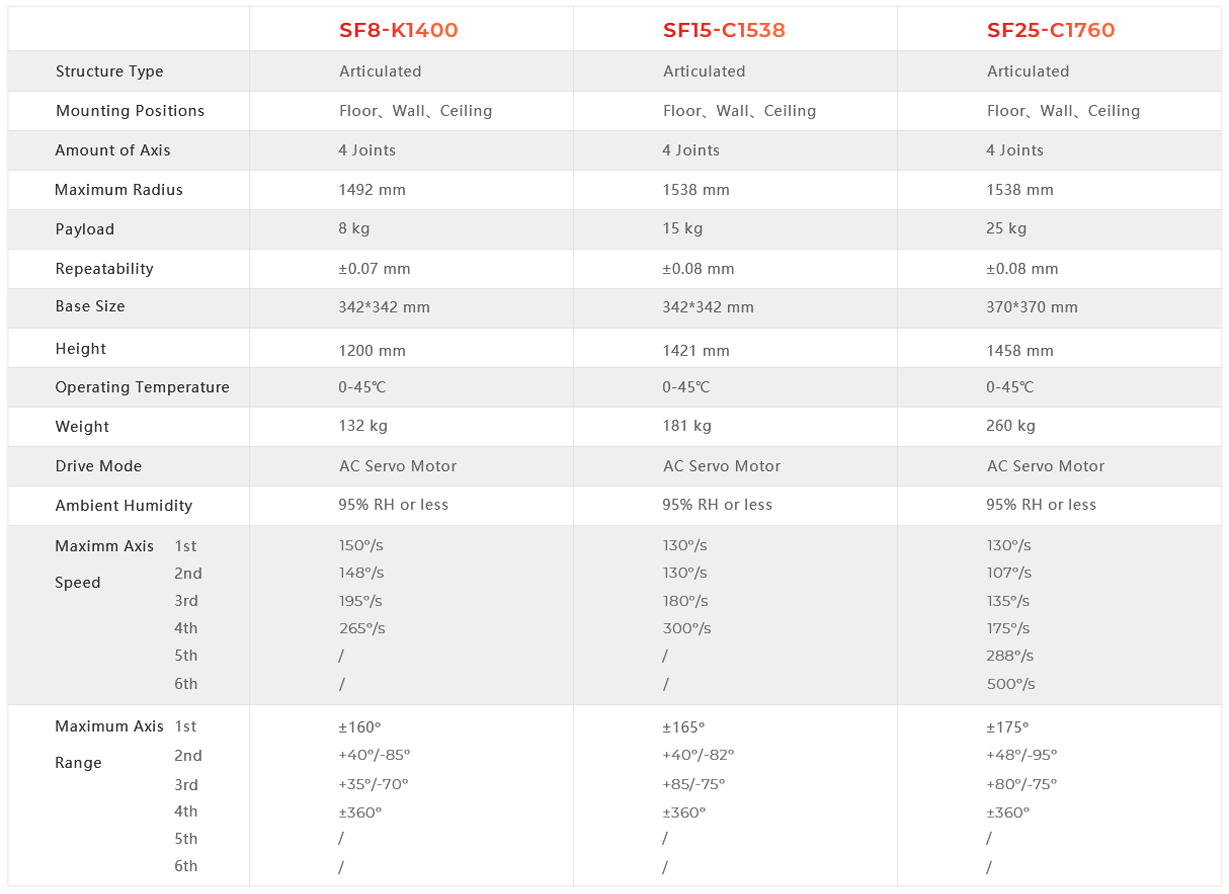

SF PRESS Data Overview


SF8-K1400 Form Data

SF25-C1538 Form Data

SF25-C1760 Form Data

Advantages

Mounting Position Flexibility

Ensuring reliability and saving space and costs per unit area of the work unit, the SF PRESS can be installed on floors, walls, and ceilings, or even at specific angles flexibly.

Time – Cost – Quality

The productivity of the SF PRESS is impressive and can be combined with the SF PRESS into a high-speed automated press line, generating huge benefits per unit of time.

Robust in a Wide Range of Working Environments

Continuous use over the entire temperature range of 0° to 45°C, 24-hour standby.

Unbeatable Price

SF PRESS has an unbeatable purchase price, low energy consumption, and low maintenance costs.

High Reliability and Durability

The rugged design of the SF PRESS ensures that it is ready to go at all times.

Cutting Edge Technology

By virtue of CHAIFU's three core components, the SF PRESS has the lowest purchase price among its peers.
