SF PA Series

The SF PA series is fast, accurate, and powerful CHAIFU industrial robots for pallet stacking on the market. A complete product portfolio obtains higher economic benefits, high precision, low cost, and very efficient productivity.

Features

The SF PA series for palletizing, handling, and stamping industrial applications offers unparalleled productivity

and high performance in the market,

completing a wide range of complete solutions quickly and precisely,

with a low deadweight design to reduce cycle times.

With its low cost and high productivity, the SF PA is the perfect choice to benefit from the efficiency of your plant

by achieving a total capacity increase with fast and accurate output in a small space.

b2_icon1.svg

Fast and Precise

With a maximum working range of 1492 mm, any application can perfectly match the SF PA.

b2_icon3.svg

The Low Total Cost of Ownership

Minimal maintenance costs, low energy consumption, and low purchase price.

chaojincou-06.svg

Ultra-Compact

The compact design allows the pallet to be placed closer to the robot and the SF PA provides optimal space utilization.

b2_icon4.svg

Suitable for Wet

The SF PA series base axes are IP 65 rated, dust and water-resistant, and the wrist axes are even IP 67 rated and ready for all-day use.

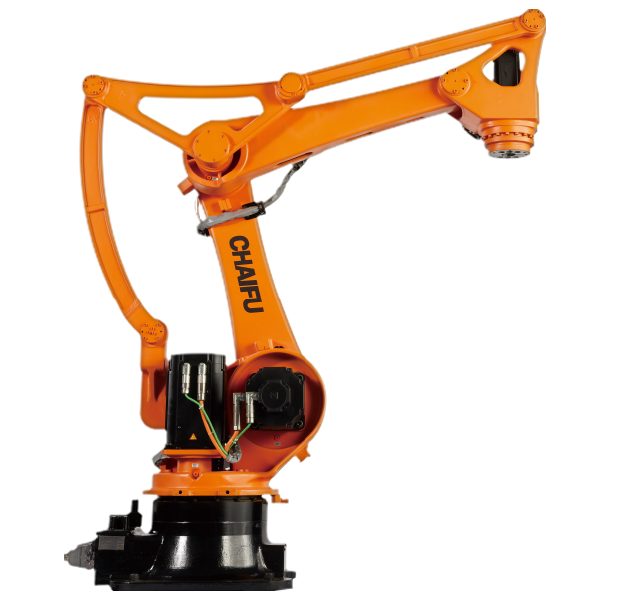

SF50-K2220 Specifications

Maximum radius:

2220 mm

Payload:

50 kg

Repeatability:

± 0.02 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

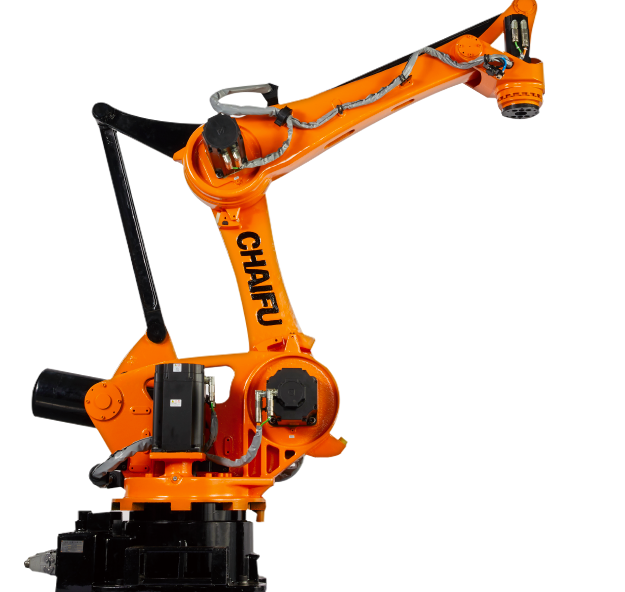

SF130-K2700 Specifications

Maximum radius:

2700 mm

Payload:

130 kg

Repeatability:

± 0.25 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.



SF165-K3200 Specifications

Maximum radius:

3200 mm

Payload:

165 kg

Repeatability:

± 0.05 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

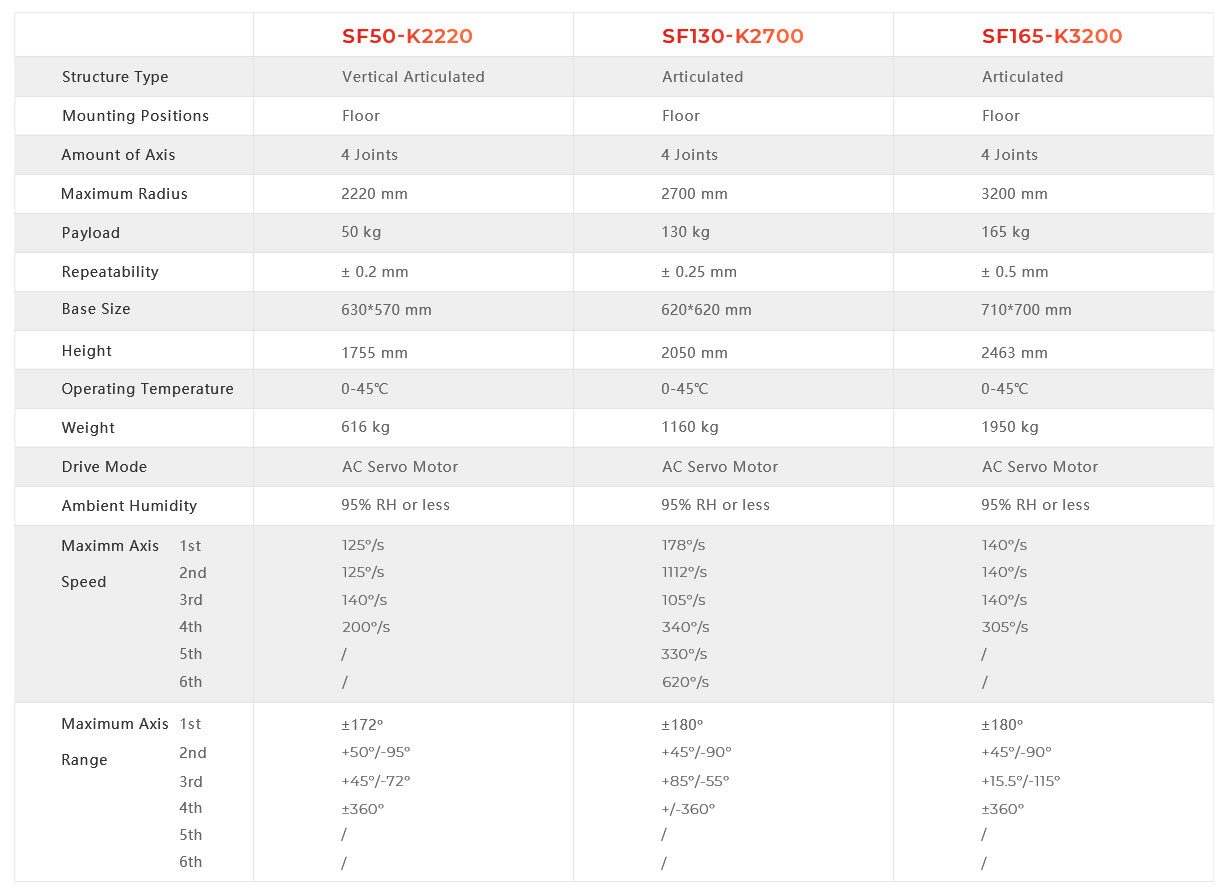

SF PA Data Overview


SF50-K2220 Form Data

SF130-K2700 Form Data

SF165-K3200 Form Data

Advantages

Fast and precise

The SF PA optimizes the path accuracy, making the speed of the cycle work fast and without losing precision, with the highest accuracy to complete any unloading palletizing operation at full speed.

Maximum Working Space

Making full use of the available space and working with maximum precision can ensure high accuracy and production quality.

Minimal Maintenance Requirements

The SF PA has minimal maintenance requirements, continually reducing your approximate cost of ownership.

High Dynamics

The SF PA can perform tasks very precisely and quickly, ensuring optimal timing of motion commands for each axis.

High Speed and High Throughput

Due to the core computing of the power controller, this palletizing robot reduces processing time and achieves exceptionally high throughput as a result.

Quality Certification

The SF50-K2200 has received CE certification according to EU standards.
