SF MIMETIC Series

The SF MIMETIC is a medium payload industrial robot with a superior working range, advanced servo control technology, and an extremely rigid arm, significantly reducing cycle times and ensuring high productivity.

Features

SF MIMETIC is a complete solution for medium payload class industrial robots to secure your

future planning and production investment. From 20 kg up to 50 kg of fine load breakdown.

It is the perfect solution to ensure accuracy and production quality.


Whether handling, machine loading/unloading, painting, stamping, palletizing, grinding,

picking/packing, or assembly/distribution. In addition, you will have the freedom

to choose the robot corresponding to your actual needs for greater efficiency and economic benefits.


All SF MIMETIC series are equipped with LIKEPRECISION technology,

the ultra-precise RV Precision Gearbox,

which enables the robot to take full advantage of its advantages even at high operating speeds.

zhinenghua-02-514.svg

Intelligent Programming

SF MIMETIC can use vision tracking, force sensors, autonomous learning, and various latest intelligent programs.

chaojincou-06-420.svg

Excellent Choice

SF MIMETIC is ideally suited to any medium payload class application, and its rugged construction and powerful motor make it a perfect fit for any task.

shiyingjihusuoyourenwu-878.svg

Robustness

The independently developed software package allows you to find your needs more precisely, and it comes out of the factory ready to go.

b2_icon4.svg

Protection

The SF50-K2178 base axis of the SF MIMETIC series is IP 65 rated, dust and water-resistant, and the wrist axis is even IP 67 rated.

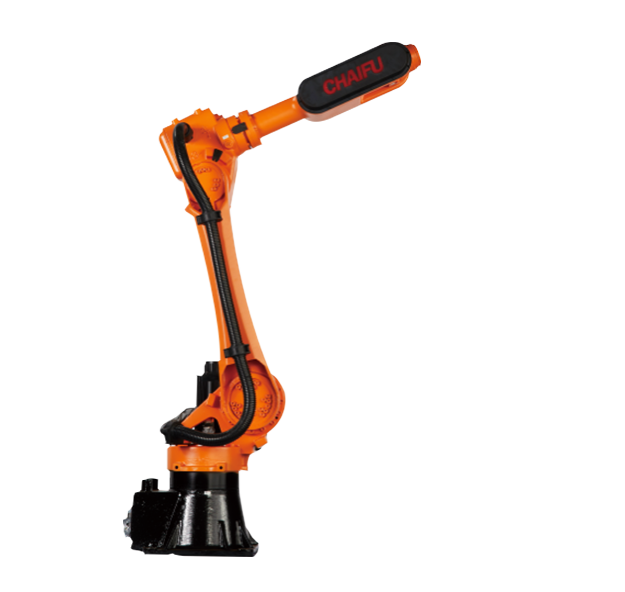

SF20-K1735 Specifications

Maximum Radius:

1735 mm

Payload:

20 kg

Repeatability:

± 0.05 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

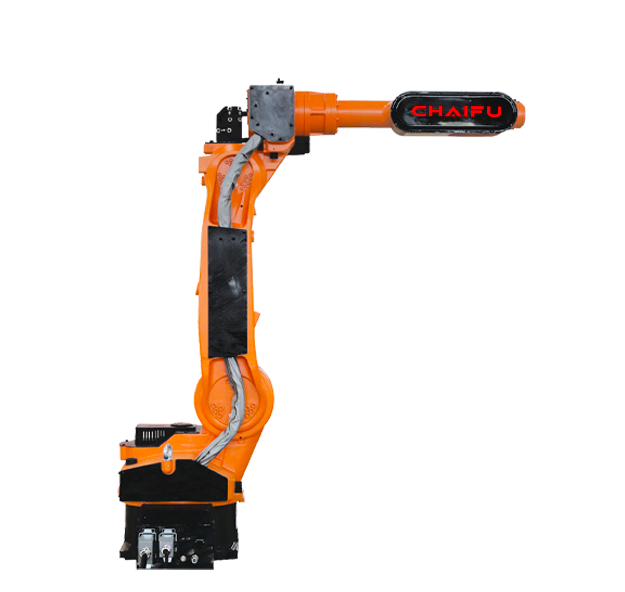

SF30-C1850 Specifications

Maximum Radius:

1850 mm

Payload:

30 kg

Repeatability:

± 0.08 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

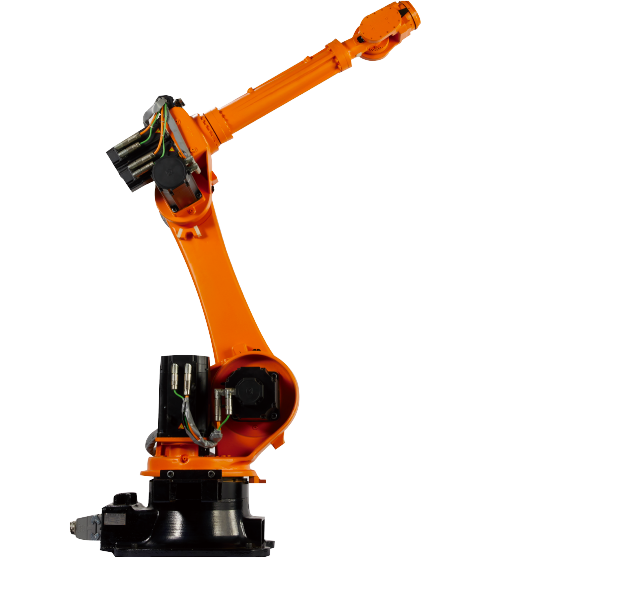

SF50-K2178 Specifications

Maximum Radius:

2178 mm

Payload:

50 kg

Repeatability:

± 0.16 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.




SF50-C2185 Specifications

Maximum Radius:

2185 mm

Payload:

50 kg

Repeatability:

± 0.16 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

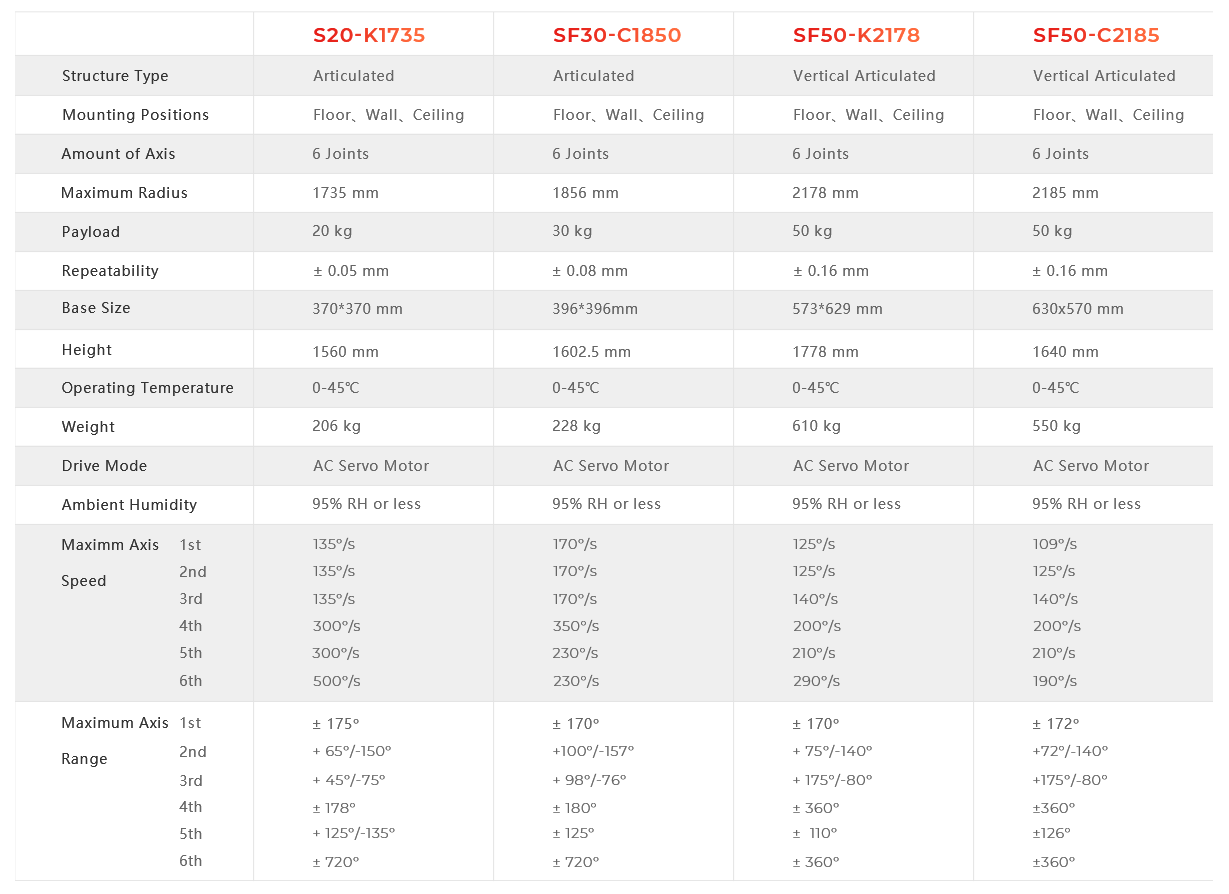

SF MIMETIC Data Overview


SF20-K1735 Form Data

SF30-C1850 Form Data

SF50-K2178 Form Data

SF50-C2185 Form Data

Advantages

Mounting Position Flexibility

The SF MIMETIC can be flexibly installed on floors, walls, ceilings, or even at specific angles, ensuring reliability and saving space and costs per working unit area.

Maximized Working Space

Utilizes available space and works with maximum precision, ensuring high accuracy and production quality.

Rugged in Many Working Environments

Continuous use over the entire temperature range of 0° to 45°C with a 24-hour standby.

System Versatility

A wide range of individually developed software packages allows you to find your needs more precisely.

Core Technology

Due to CHAIFU's three core components, the SF MIMETIC is the lowest purchase price in the industry.

High Dynamics

By the combined effect of all elements, shaft and axis beat times have been reduced, and maximum throughput increased.
