SF LOTIC Series

The SF LOTIC is a series of low payload industrial robots tailored to handle small objects with excellent performance and flexibility at all times.

Features

SF LOTIC is your indispensable helper in making cost-effective choices with a wide range of products.

With a finely segmented maximum movement radius of 2032 mm and 3100 mm,

you can precisely define the robot you need with excellent performance and stability

while paying less for investment and energy costs.

All SF LOTIC series are equipped with LIKEPRECISION technology, the ultra-precise RV Precision Gearbox,

which allows the robot to take full advantage even at high operating speeds.


b2_icon1.svg

Extremely Compact and Flexible

The compact design and small footprint, with a base size of only 370*370 mm, allows for optimal space utilization in the working area.

chaojincou-06-903.svg

Superior Performance

Highly rigid materials and advanced CHAIFU SERVO MOTOR servo control technology for repeatable positioning accuracy of 0.05 mm.

shiyingjihusuoyourenwu.svg

Robustness

The independently developed software package allows you to find your needs more precisely, and it comes out of the factory ready to do its job.

b2_icon4.svg

Suitable for Humid and Complex Environments

With its IP 65 protection level, the SF LOTIC series is ready for 24 hours a day in humid environments.

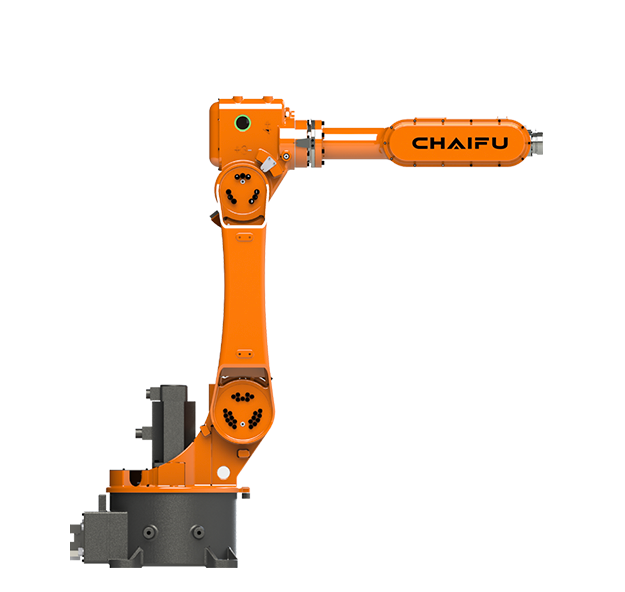

SF10-C1650 Specifications

Maximum Radius:

1650 mm

Payload:

10 kg

Repeatability:

± 0.05 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

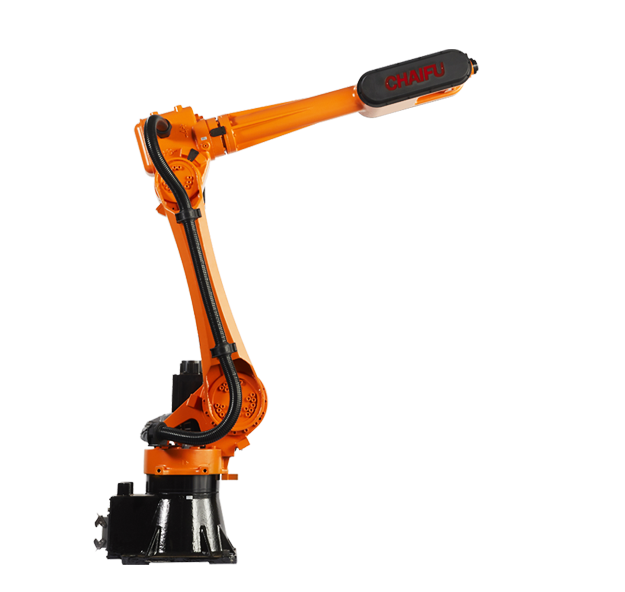

SF10-K2032 Specifications

Maximum Radius:

2032 mm

Payload:

10 kg

Repeatability:

± 0.05 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

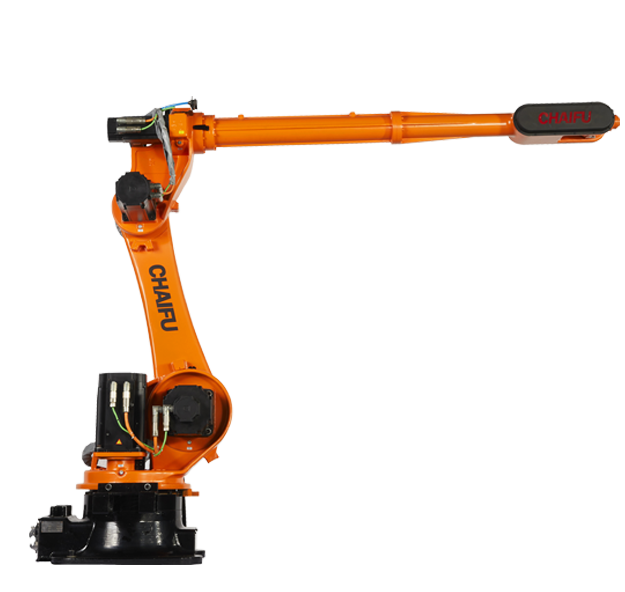

SF10-K3100 Specifications

Maximum Radius:

3100 mm

Payload:

10 kg

Repeatability:

± 0.15 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

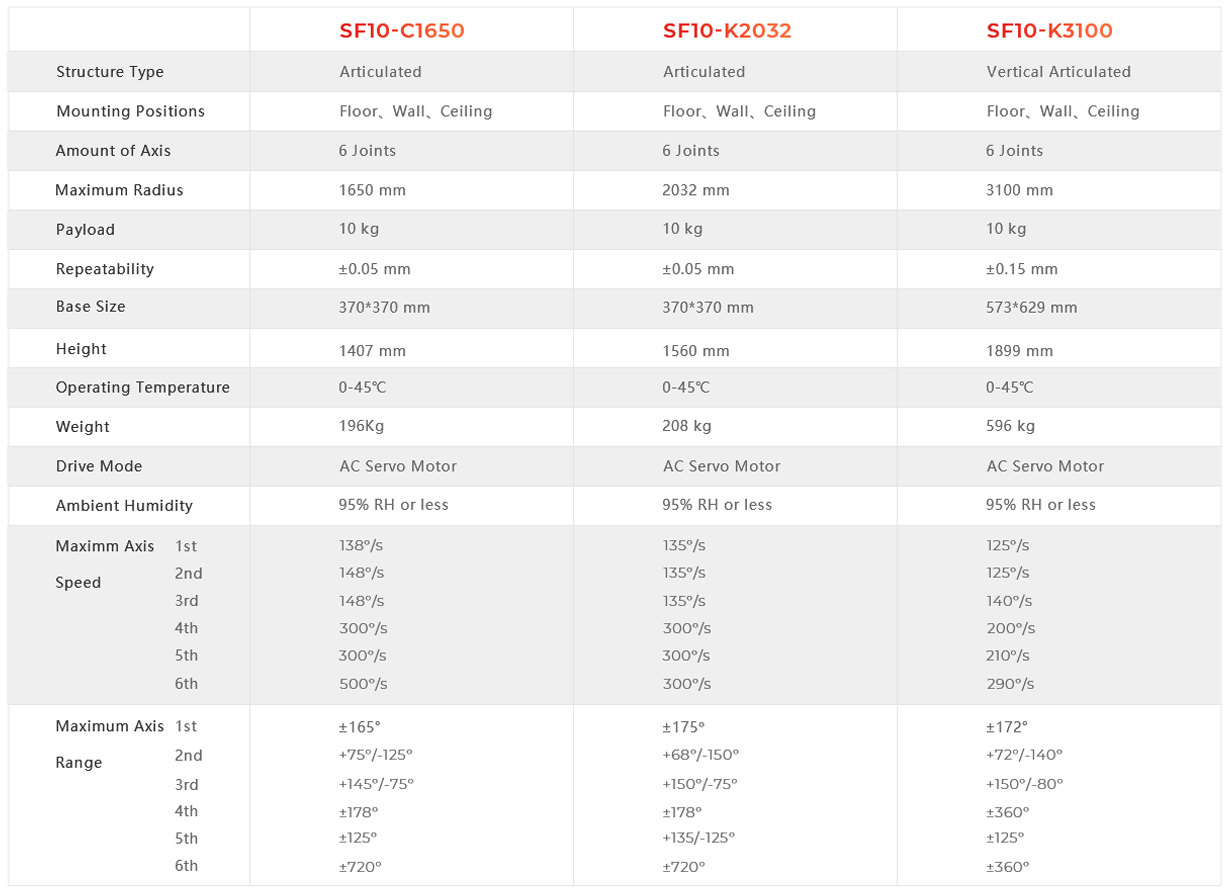

SF LOTIC Data Overview


SF10-C1650 Form Data

SF10-K2032 Form Data

SF10-K3100 Form Data

Advantages

Mounting Position Flexibility

With reliability, space, and cost savings per working unit area, the SF LOTIC can be flexibly installed on floors, walls, ceilings, or even at specific angles.

Highest Precision

Extremely fast and precise, the SF LOTIC series industrial robots have a repeatability of 0.05 mm, allowing them to take full advantage of their performance even at high operating speeds.

Robust Protection

Continuous operation in environments with Relative Humidity (RH) less than or equal to 95%.

System Versatility

A wide range of independently developed software packages allows you to find your needs more precisely.

Workspace Maximization

Maximizes available space and works with maximum accuracy, ensuring high accuracy and production quality.

High Dynamics

The combined effect of all elements reduces axis and shaft beat times, and maximum throughput is increased.
