SF ARC Series

The SF ARC is your most vital partner in the field of industrial arc welding, with the innovative technology of the Hollow Wrist, which ensures extremely short motion cycles and the highest precision trajectory.

Features

The SF ARC is your most vital partner in the field of industrial arc welding, with the innovative technology of the Hollow Wrist, which ensures extremely short motion cycles and the highest precision trajectory.

SF ARC products have the best performance and highest power density to achieve maximum economic benefits at the lowest cost, especially for arc welding, cutting, handling, machine loading/unloading, picking/packing, assembly/distribution.

The Plus series (SF6-C1400P & SF6-C2080P) can precisely determine the actual robot needed for higher efficiency and economic benefits through fine grading and higher core computing.


b2_icon1.svg

Highest Precision

Due to the LIKEPRECISON ultra-precision rotate vector reducer. With a repeatability of 0.05 mm, the SF ARC works with great accuracy and precision.

b2_icon2.svg

Flexible Installation Position

It can be mounted on the floor, wall, ceiling, or at any angle.

b2_icon3.svg

Excellent Price/Performance Ratio

The low purchase price, low operating costs and maintenance costs.

b2_icon4.svg

Protection

With IP 65 protection, the SF ARC Series is ready for 24 hours a day in humid environments.


SF6-C1400P Specifications

Maximum Radius:

1440 mm

Payload:

6 kg

Repeatability:

± 0.05 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.




SF6-C2080P Specifications

Maximum Radius:

2080 mm

Payload:

6 kg

Repeatability:

± 0.05 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.




SF6-C1400 Specifications

Maximum Radius:

1400 mm

Payload:

6 kg

Repeatability:

± 0.05 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.




SF6-C2080 Specifications

Maximum Radius:

2080 mm

Payload:

6 kg

Repeatability:

± 0.05 mm

Protection Rating:

IP 65

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

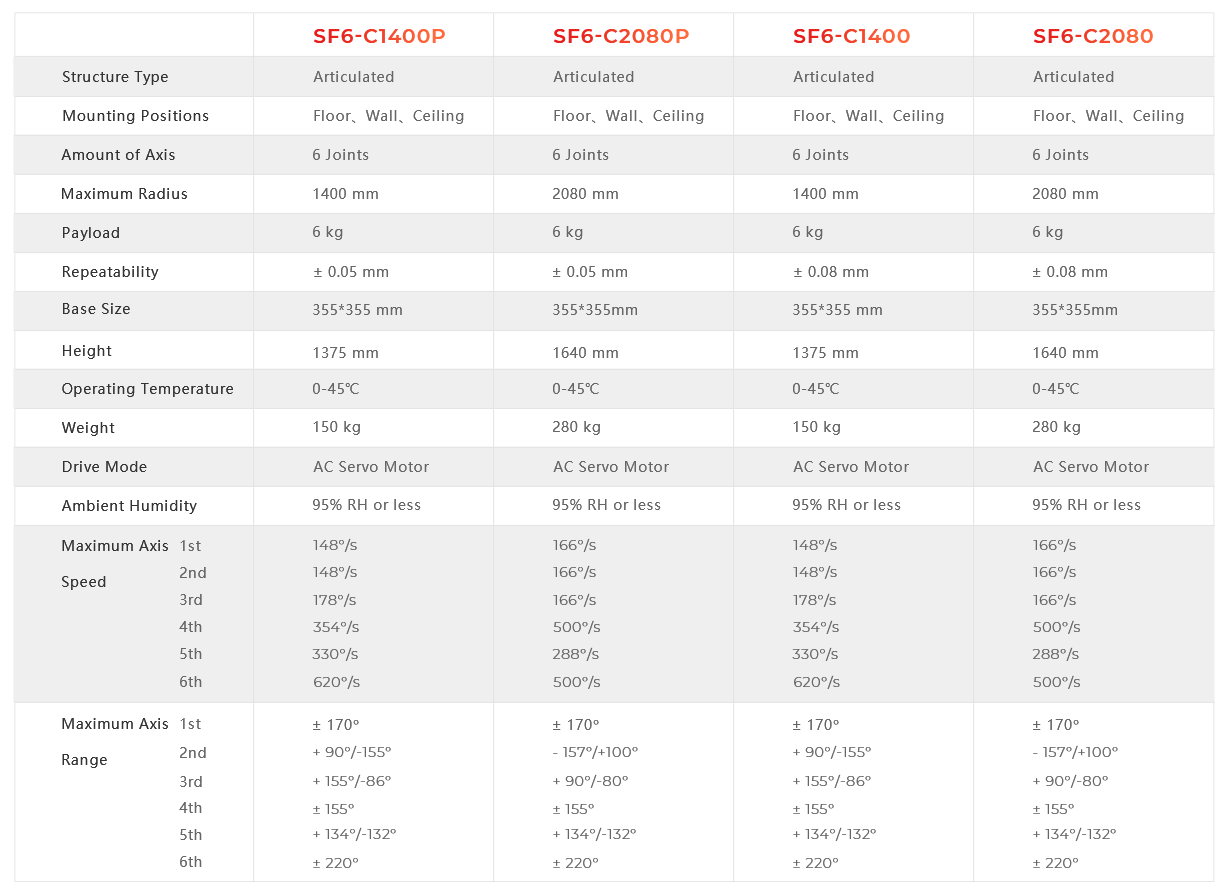

SF ARC Data Overview


SF6-C1400 Form Data

SF6-C2080P Form Data

SF6-C1400 Form Data

SF6-C2080 Form Data

Advantages

Highest Precision

With the ultimate in speed and precision, the SF ARC Series industrial robots have a repeatability of 0.05 mm, allowing them to take full advantage of their performance even at high operating speeds.

The New Machine Hollow Wrist

The hollow mechanical wrist design that reduces base axis motion maintains the highest motion accuracy and shortest cycle times with the same accuracy as other robots.

Freedom of Installation Position

The SF ARC can be flexibly installed on floors, walls, and ceilings, or even at specific angles to achieve installation while ensuring reliability and saving space and costs per unit area of the working unit.

High Performance at an Attractive Price

The PLUS series (SF6-C1400P & SF6-C2080P) achieves higher efficiency and economic benefits with improved controller structure and refined algorithms.

Minimal Maintenance Requirements

The SF ARC has minimal maintenance requirements, constantly reducing your approximate cost of ownership.

Quality Certification

The SF ARC series has received CR certification for Chinese robots and CE certification for EU standards.
