SF ALPHTIC Series

The SF ALPHTIC is the most powerful and technologically advanced heavy-duty robot, ideal for large, high-load applications, and its rugged construction makes the SF ALPHTIC the perfect combination of power and technology.

Features

The SF ALPHTIC is CHAIFU's heavy-duty robot perfectly matched to any application thanks to its ultra-high craftsmanship and rugged structural design. The powerful motors and gearboxes are designed to perform a wide range of heavy-duty tasks. The long working stroke of 3,300 mm allows it to fit comfortably in small work cells. The three core components of the CHAIFU convince with their low cost, high efficiency, and low maintenance, even in heavy-duty applications.

All SF ALPHTIC series are equipped with LIKEPRECISION technology and the highest precision joint part reducer, RV Reducer, which enables the robot to take full advantage of its advantages even in high-speed operation.

zhinenghua-02-784.svg

Masterful

SF ALPHTIC can use vision tracking, force sensors, autonomous learning, and various latest intelligent programs.

shiyingjihusuoyourenwu-304.svg

Powerful

The independently developed software package allows you to find your needs more precisely and be ready to go from the factory.

b2_icon4.svg

Protection

The full range of SF ALPHTIC base axes are IP 65 rated, dust and water-resistant, and the wrist axes are even IP 67 rated and ready to go all day.

chaojincou-06-586.svg

Formidable

With repeatability of 0.3 mm and an arm's length of up to 3200 mm for loads up to 500 kg, the SF ALPHTIC will handle any heavy-duty task with ease.

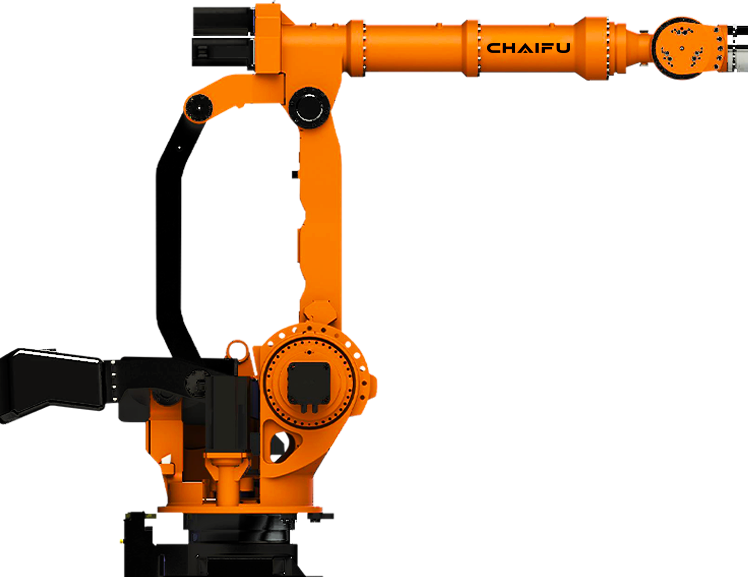

SF500-C3100 Specifications

Maximum Radius:

3100 mm

Payload:

500 kg

Repeatability:

± 0.3 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

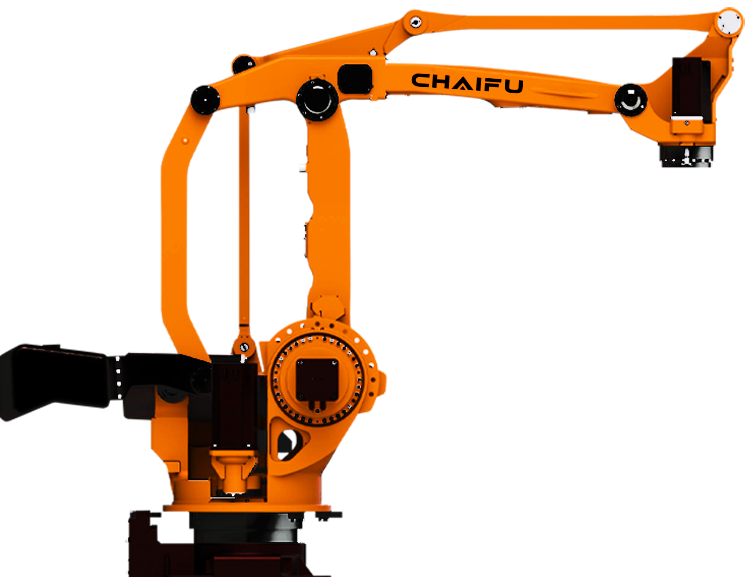

SF500-C3200 Specifications

Maximum Radius:

3200 mm

Payload:

500 kg

Repeatability:

± 0.5 mm

Protection Rating:

IP 65 (The wrist is protected to IP 67)

* Due to the continuous technological progress, technical parameters and configuration differences from the actual machine are subject to the actual delivery.


In addition, the machine on the picture may include additional equipment.

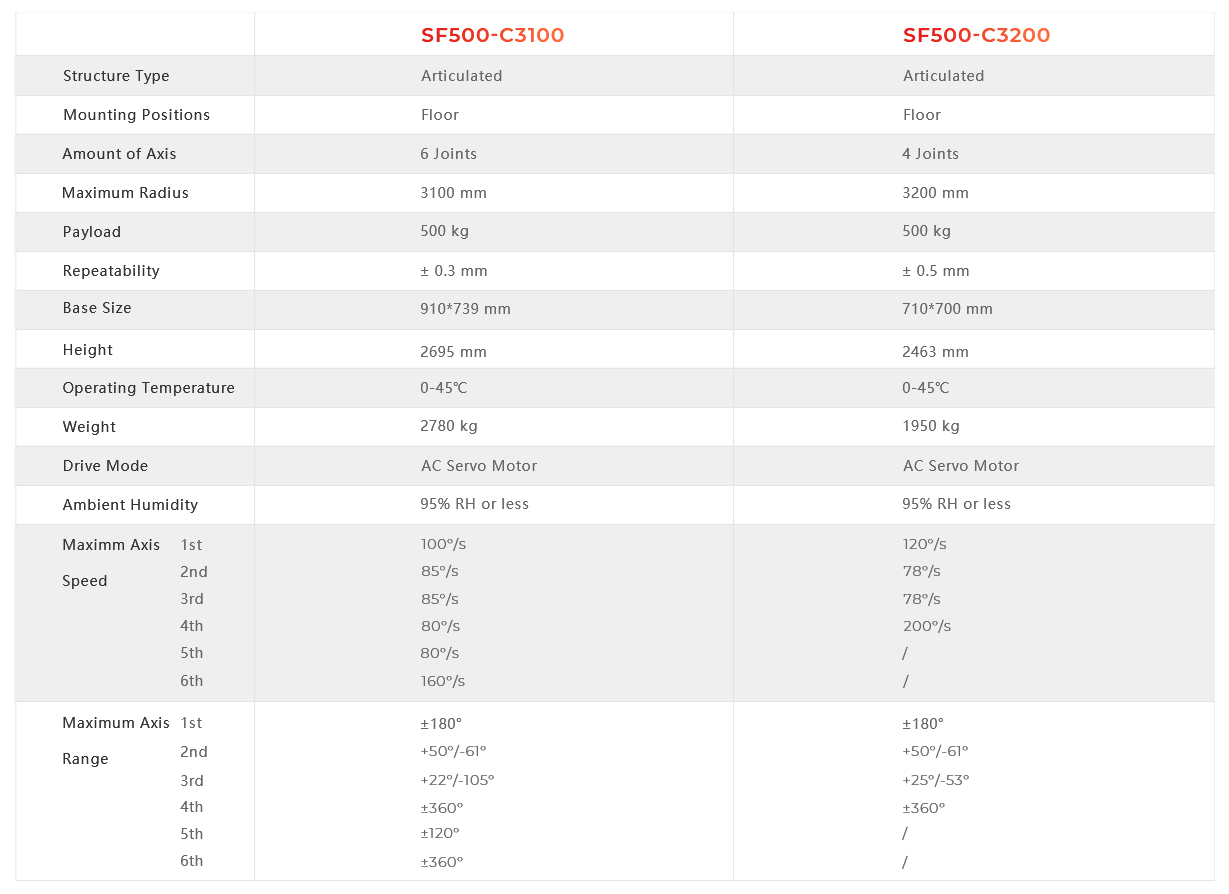

SF ALPHTIC Data Overview


SF500-C3100 Download Information

SF400-C3200 Download

Advantages

System Diversity

A wide range of independently developed software packages allows you to find your needs more precisely.

Utmost Precision

Extremely fast and precise, the SF ALPHTIC series industrial robots have a repeatable accuracy of 0.3 mm, allowing them to take full advantage of their performance even at high operating speeds.

Ruggedized in Many Working Environments

Continuous use over the entire temperature range from 0° to 45°C, 24-hour standby.

Core Technology

Due to CHAIFU's three core components, SF ALPHTIC has the lowest purchase price among its peers.

Maximum Protection

Continuous operation in environments with Relative Humidity (RH) less than or equal to 95%.

Maximum Working Space

Maximizes available space and works with maximum precision, ensuring high accuracy and production quality.
